AKROTEK® PK

Polyketon solves problems where others fail

capoeira dancer on beach

AKROTEK® PK: The revolution for your application

An aliphatic polyketone (PK) is a thermoplastic polymer with a melting point of 220°C.

PK is characterized by a number of distinctive properties and is becoming increasingly popular due to its environmental friendliness compared to other plastics. This is because it contains carbon monoxide (CO) as a comonomer. Carbon monoxide is an industrial waste gas that contributes to global warming. However, by using CO in the structure of polyketone, this gas is bound and converted into a useful monomer.

Selection of characteristic properties:
  • good resistance to chemicals and hydrolysis

  • reduced moisture absorption

  • short cycle times due to rapid crystallization

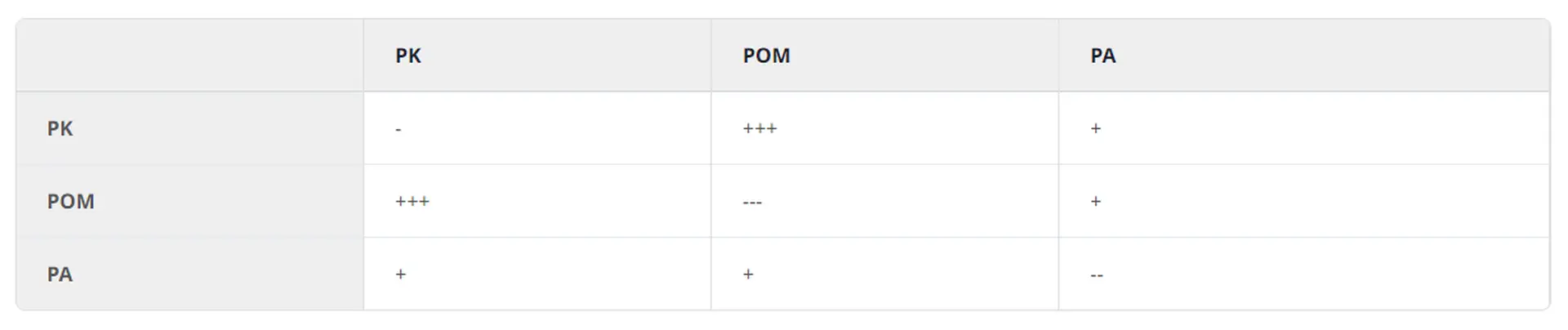

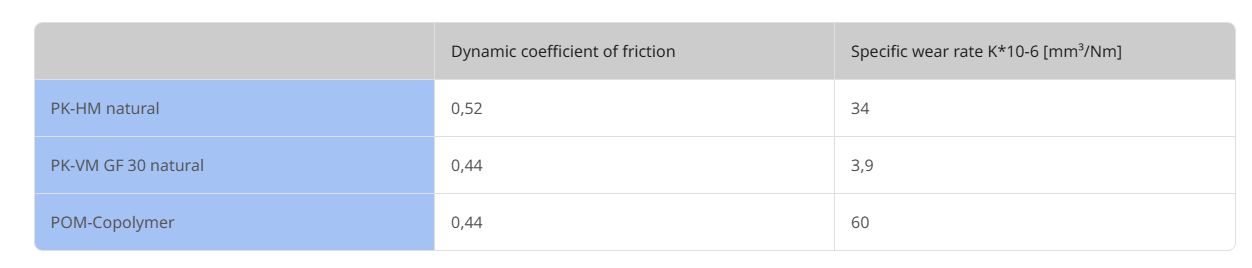

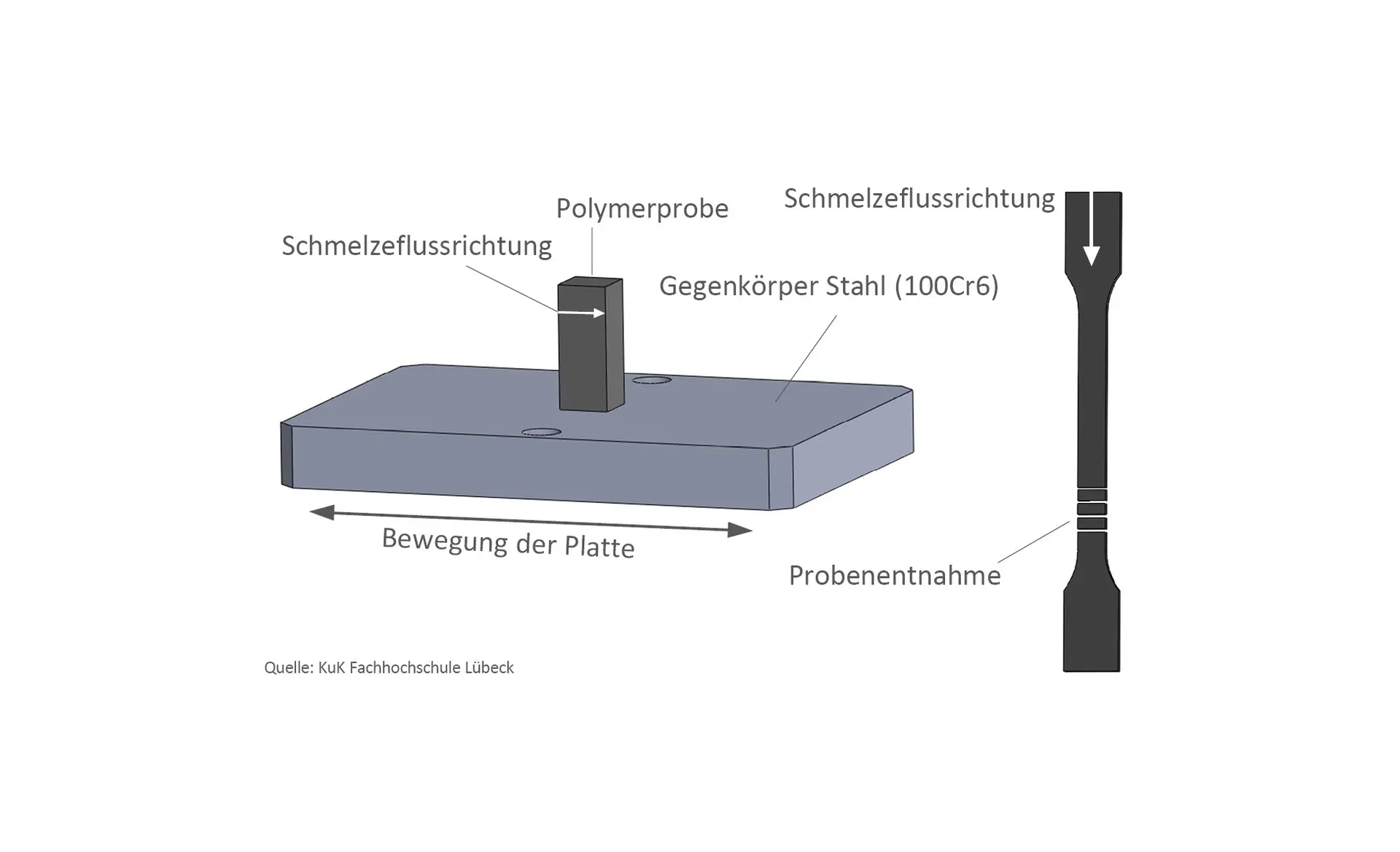

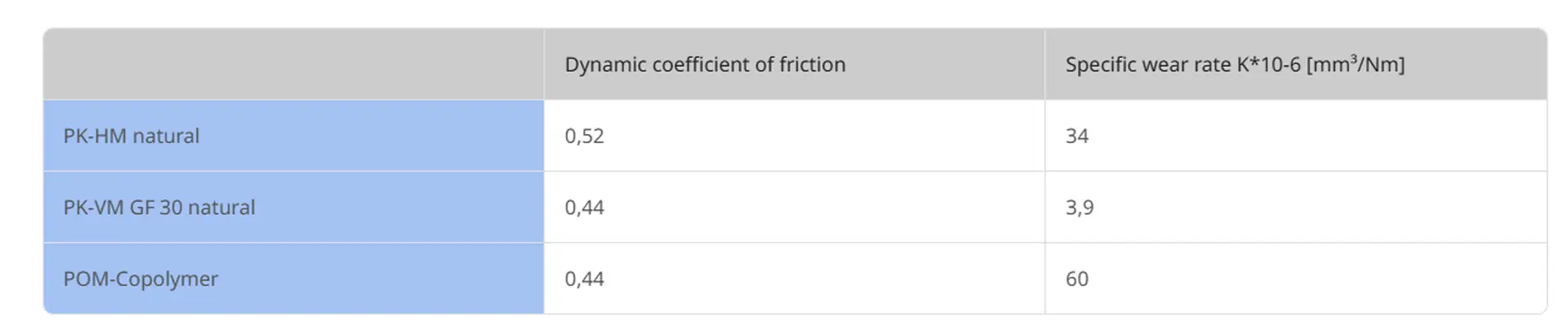

  • good tribological properties

  • low CO2 footprint

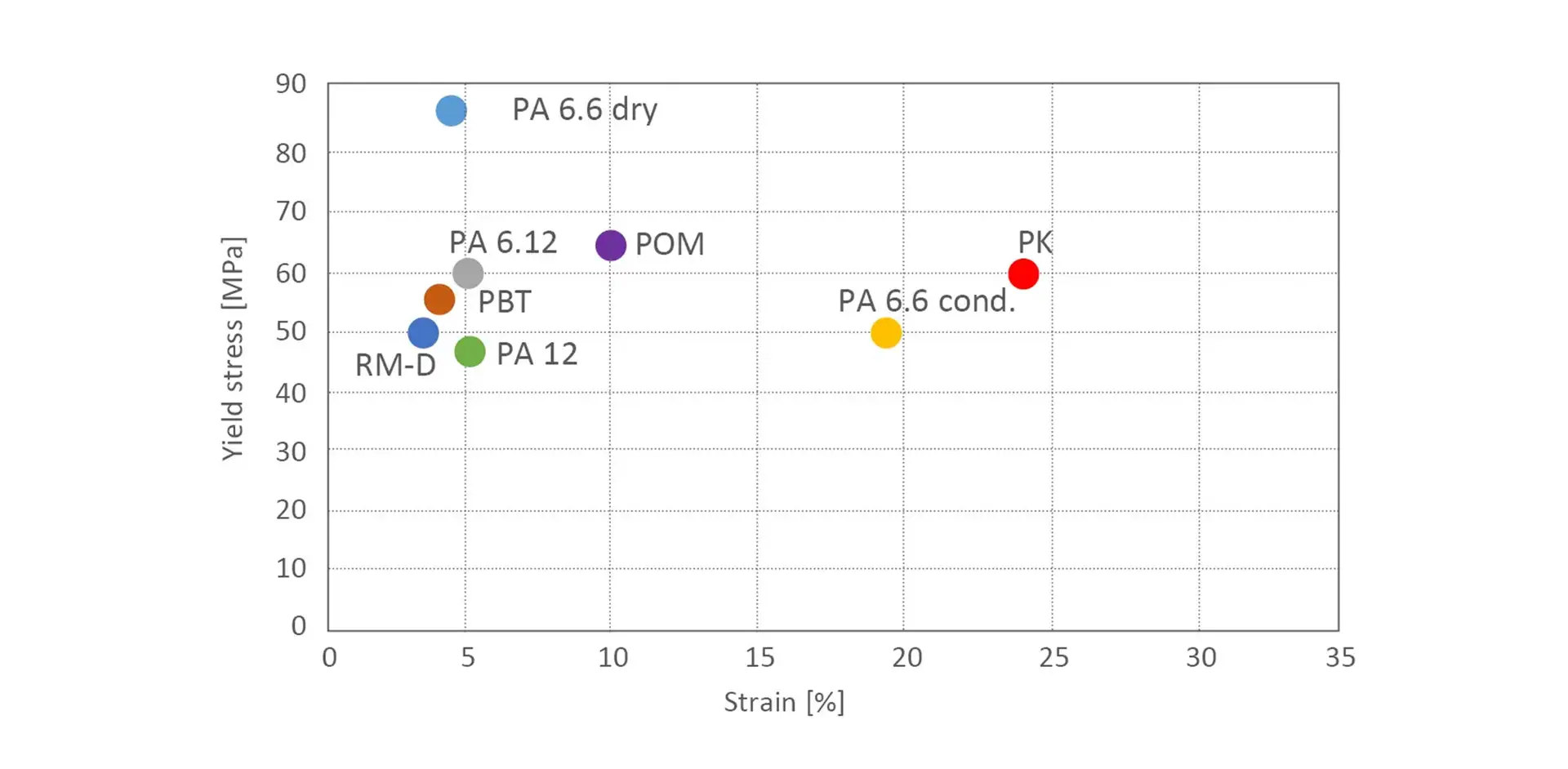

Yield strain PK_EN

Compared to other engineering plastics, AKROTEK® PK is characterized by particularly high tensile strength at the yield point and, with almost 25 % elongation at yield, has a unique material property that is not known in any other engineering polymer.

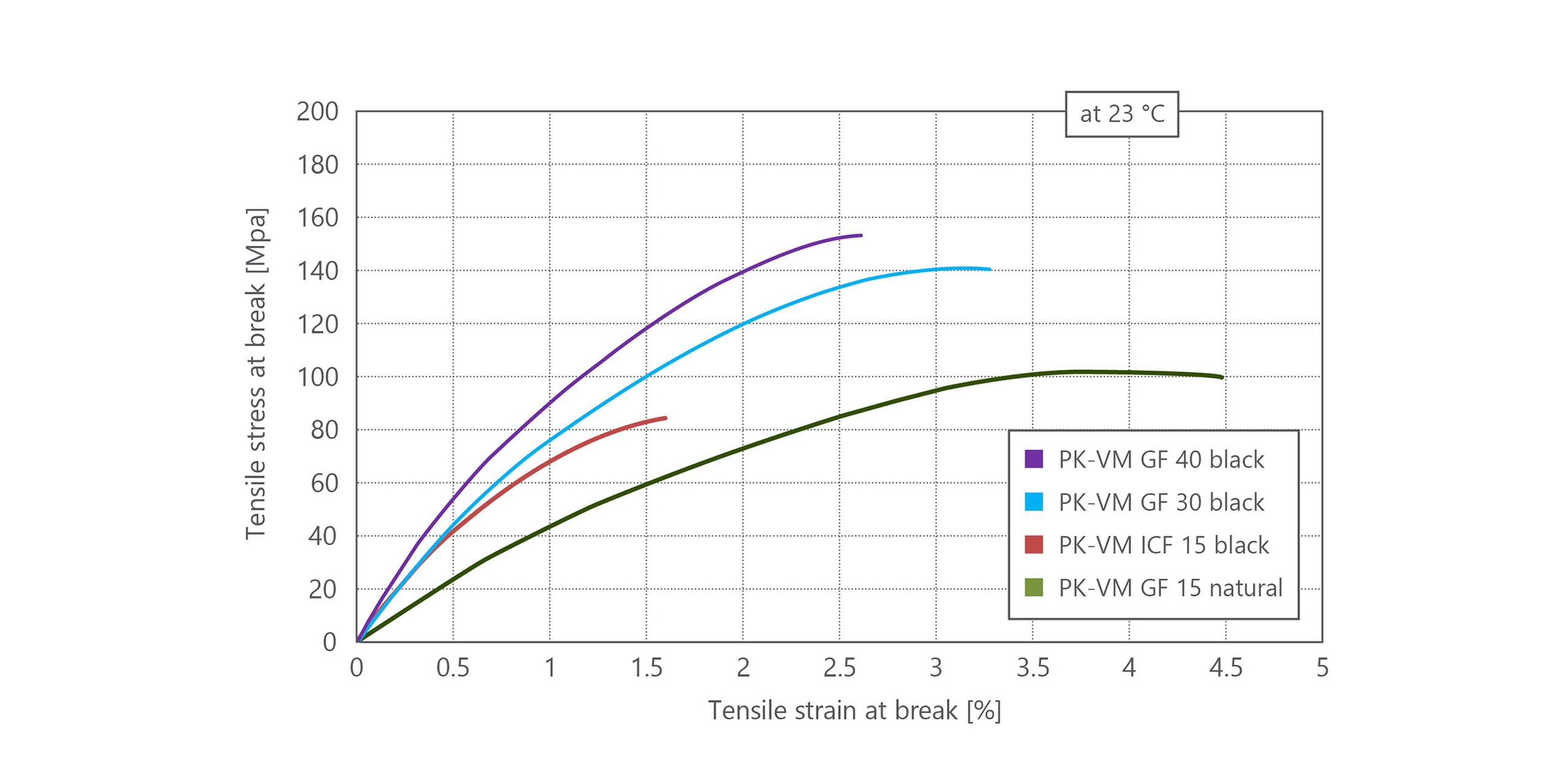

spannungs-dehnungskurve-pk_en

Stress-strain curves of various reinforced PK at a glance

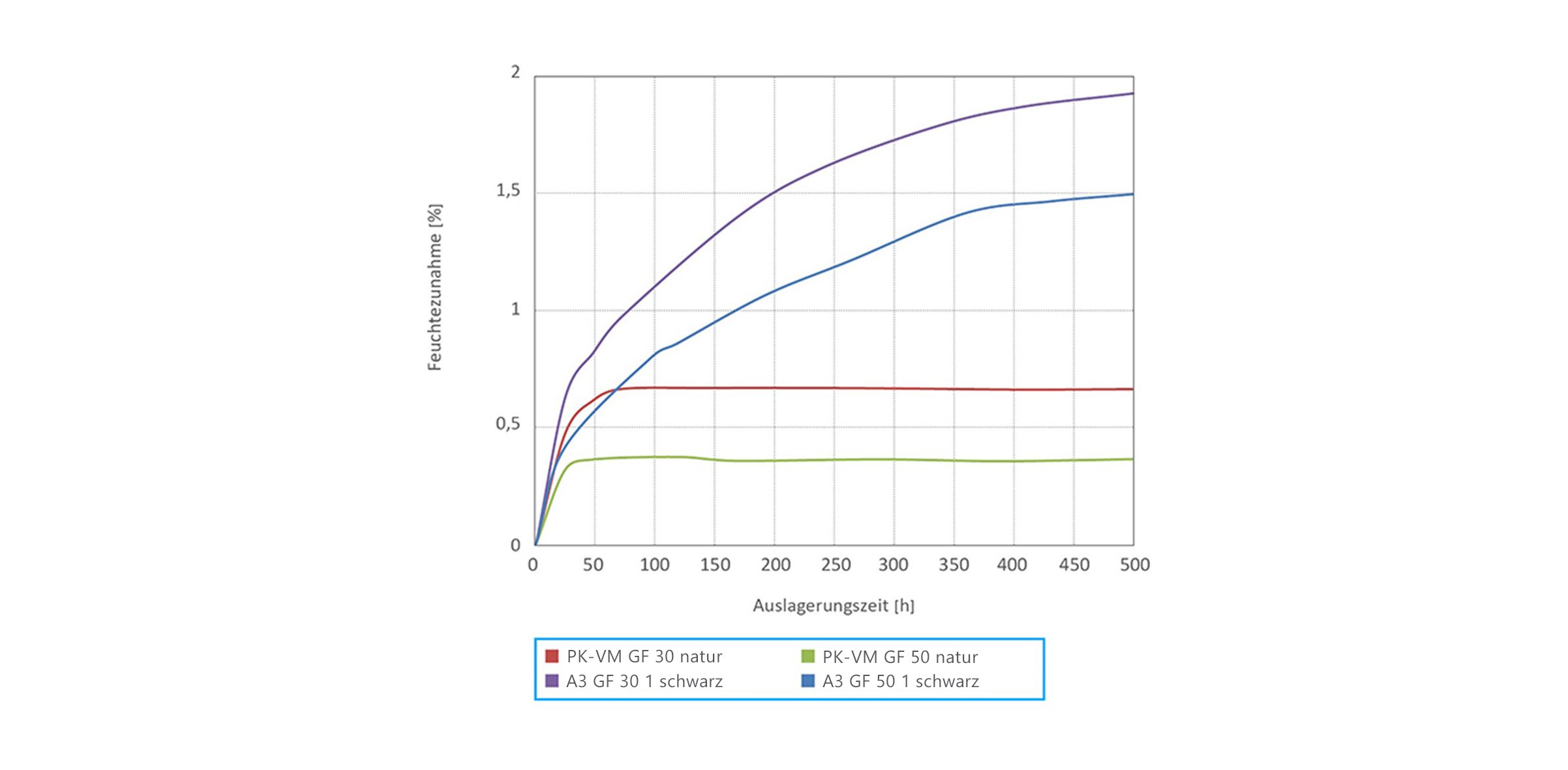

Feuchteaufnahme_PK_EN

Product Characterisation

AKROTEK® PK

Image dimensions not found

Change image or reupload it

Injection molding process

Process optimized compounds

Polyketone tends to thermo-oxidative degradation and / or crosslinking reactions under excessive thermal stress. This can be recognized by an increase in viscosity and / or the appearance of dark spots in natural colored compounds. During the injection molding process, a residence time of 10 minutes should not be exceeded.

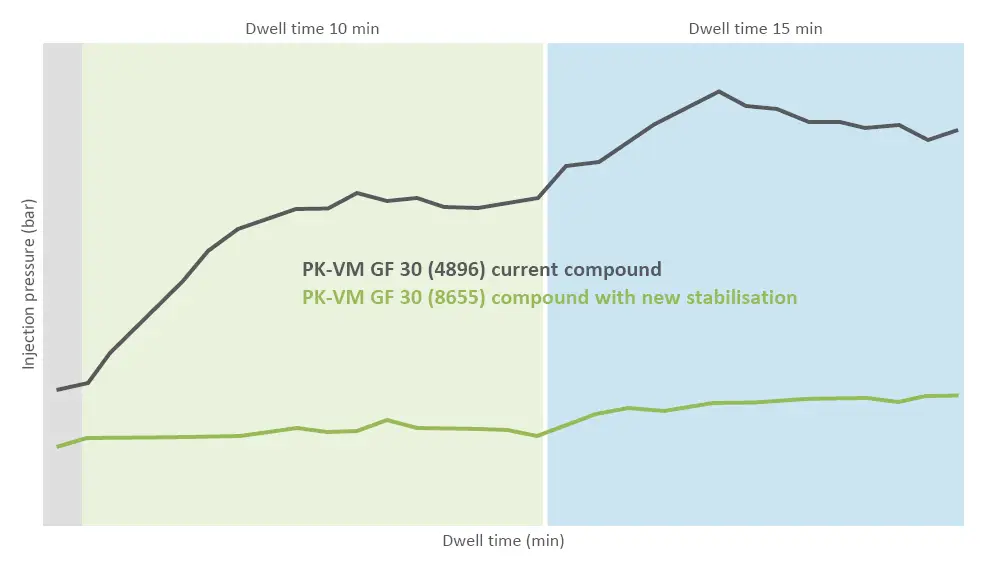

AKRO-PLASTIC succeeded in developing a product series, which is characterized by a larger process window during processing. As you can see from the graph, the injection pressure of the currently available AKROTEK® PK-VM GF 30 black (4896) increases continuously with the increase of the dwell time in the injection molding unit and has reached a pressure maximum at a dwell time of 10 min. The optimized variant with improved stabilization, AKROTEK® PK-VM GF 30 black (8655), exhibits an almost constant injection pressure over a wide dwell time range.

Compound Explorer

Find the Right Polyketone (PK) for Your Application


High technical and flame-retardant products with improved CO2 footprint

Flame-retardant polyketone

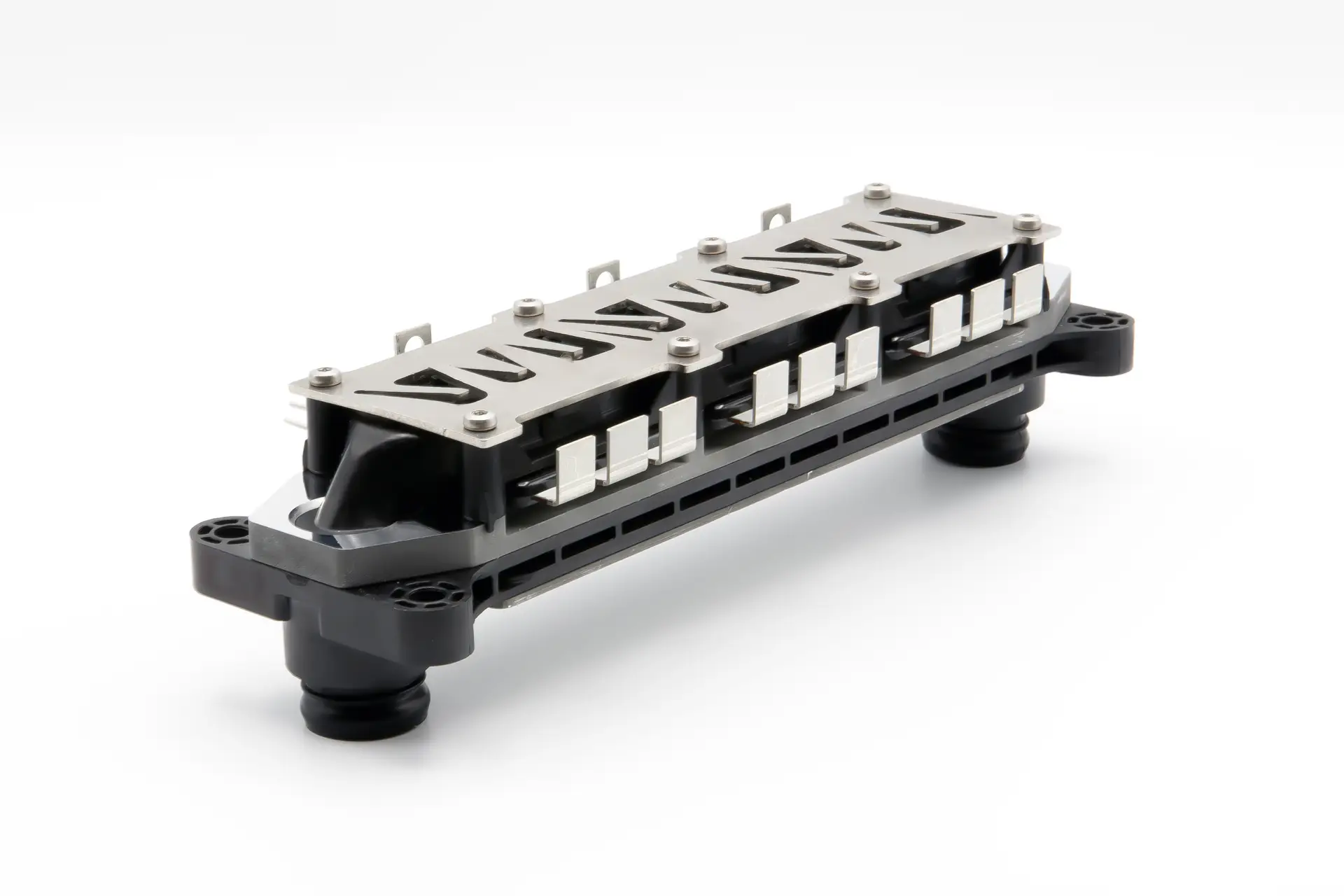

Special requirements in e-mobility regarding flame retardancy, mechanics, chemical resistance, electrical properties, colour stability, processability and sustainability pose major challenges for a compound. AKROTEK® PK-VM GF 30 FR orange (8537) is the product of choice for e-mobility applications, e.g. battery management, MEB connectors, cable ducts and more.

The AKROTEK® PK-VM GF 30 FR meets the highest flammability requirements and is UL listed in all colours V0 from @ 0.8mm including RTI listing. AKRO uses only the most advanced flame-retardant systems that are free of red phosphorus and halogens. The requirements of high voltage components, such as bus bars, require a CTI of 600 V, which AKROTEK®PK-VM GF 30 FR orange (8537) meets.

More about flame-retardant products

The required colour stability and laser marking of the e-mobility industry can be realised by this material.

The process optimised AKROTEK® PK product portfolio offers injection moulders a wider processing window and more flexibility in processing.

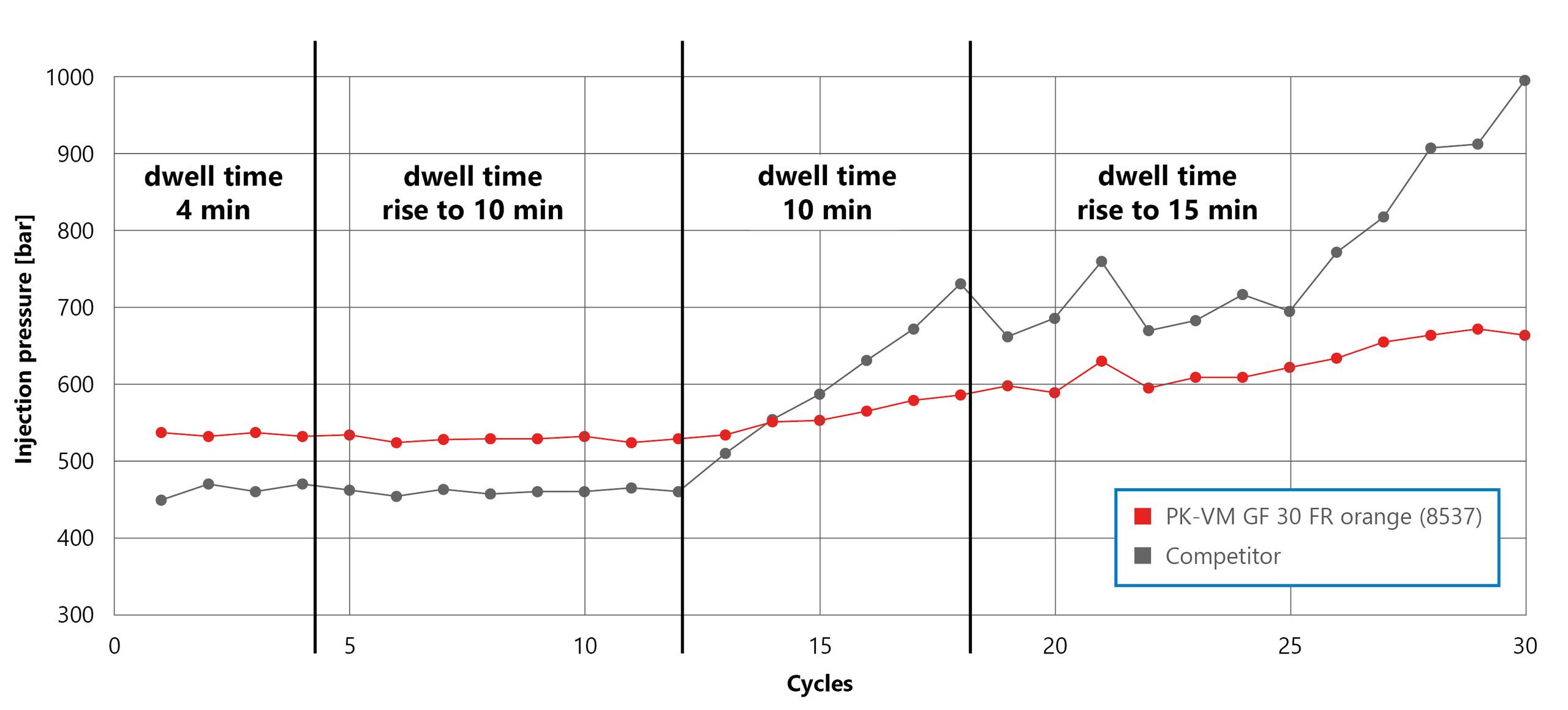

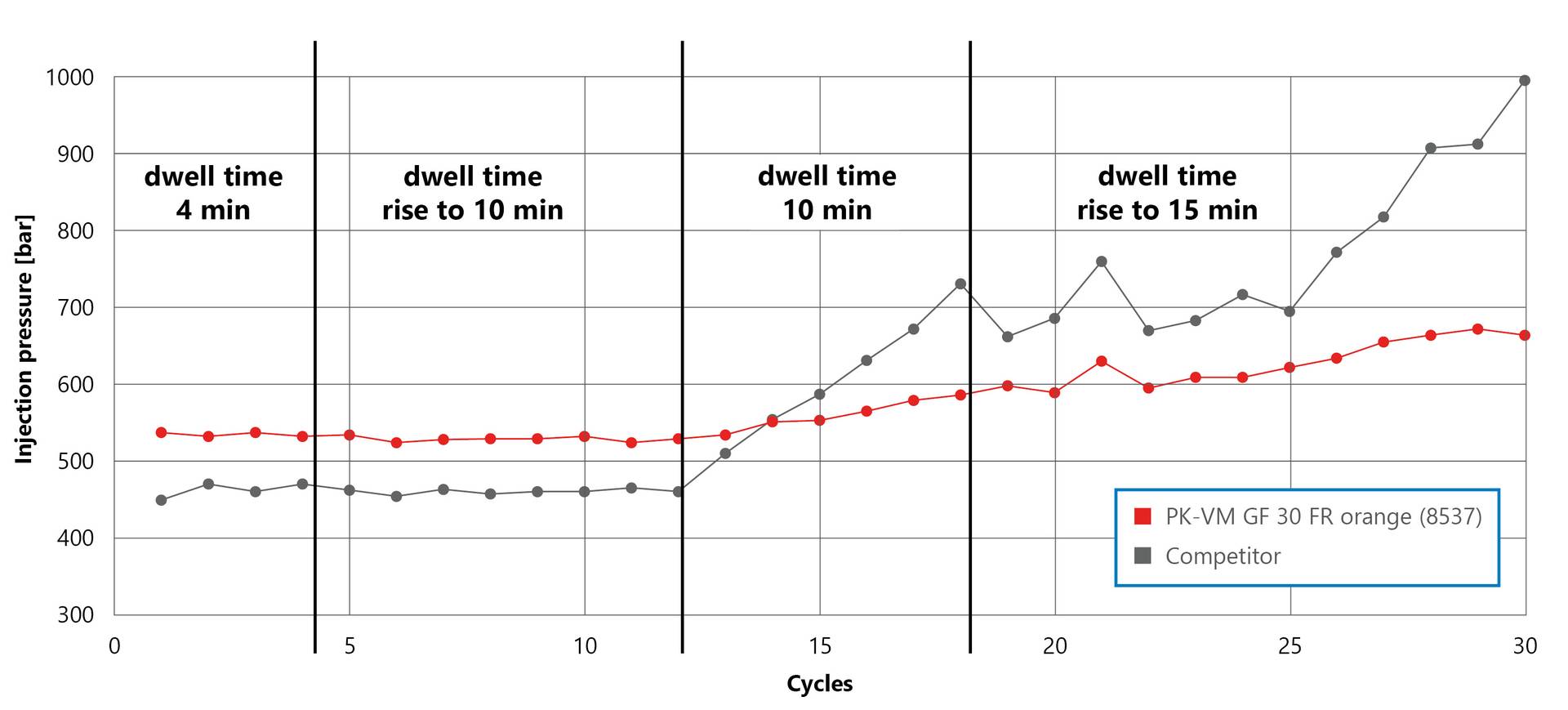

Diagramme_1500px_Verweilzeiten PK-VM GF 30 FR_en

AKROTEK® PK-VM GF 30 FR was developed for injection moulding and can also be processed on a large scale in 3D printing using pellet extrusion in additive manufacturing. See the video below.

Video-Play-Button

Image dimensions not found

Change image or reupload it

Resistance to Media

Hydrolysis resistance

Compared to A3 GF 30 4 6 (13690), PK-VM GF 30 (8655) shows only a minimal reduction in material strength after 1000 hours. This reduction hardly affects the performance.

The natural resistance of polyketone to water glycol opens up a clear advantage in terms of component geometry design. As a result, thin-walled components can be easily realized at constant pressure ratios in the component without having to compromise on structure or performance. This opens up new possibilities for efficient and lighter designs, which is an important factor in various industries. Another advantage is the high weld line strength under pressure in water/glycol, even at elevated temperatures. These properties make PK a versatile and high-performance material, especially in applications that require robust components in various environmental conditions.

Image dimensions not found

Change image or reupload it

Resistance to Media

Chemical Resistance

The outstanding chemical resistance of polyketones (PK) is based on their semi-crystalline structure. Approximately half of their chemical components are derived from carbon monoxide, and a comparable structure is difficult to find in conventional chemicals and solvents. Therefore, polyketones exhibit excellent resistance to chemical influences.

The table illustrates that PKs demonstrate remarkable resistance to dissolution, degradation, and swelling when in contact with various chemicals. Neither fuels nor halogenated or aromatic hydrocarbons significantly affect their mechanical properties. Materials with hydrogen bonding, such as water, methanol, and ethanol, only cause slight swelling.

Of particular note is that solvents with similar chemical compositions, especially ketones and esters, only induce minimal swelling. In contrast to polyamides like PA6 and PA 6.6, polyketone shows pronounced resistance to aqueous media, including weak acids and bases. However, PK is less resistant to strong acids and bases, especially under elevated temperature and prolonged exposure.

Show more

Download detaillierte Informationen

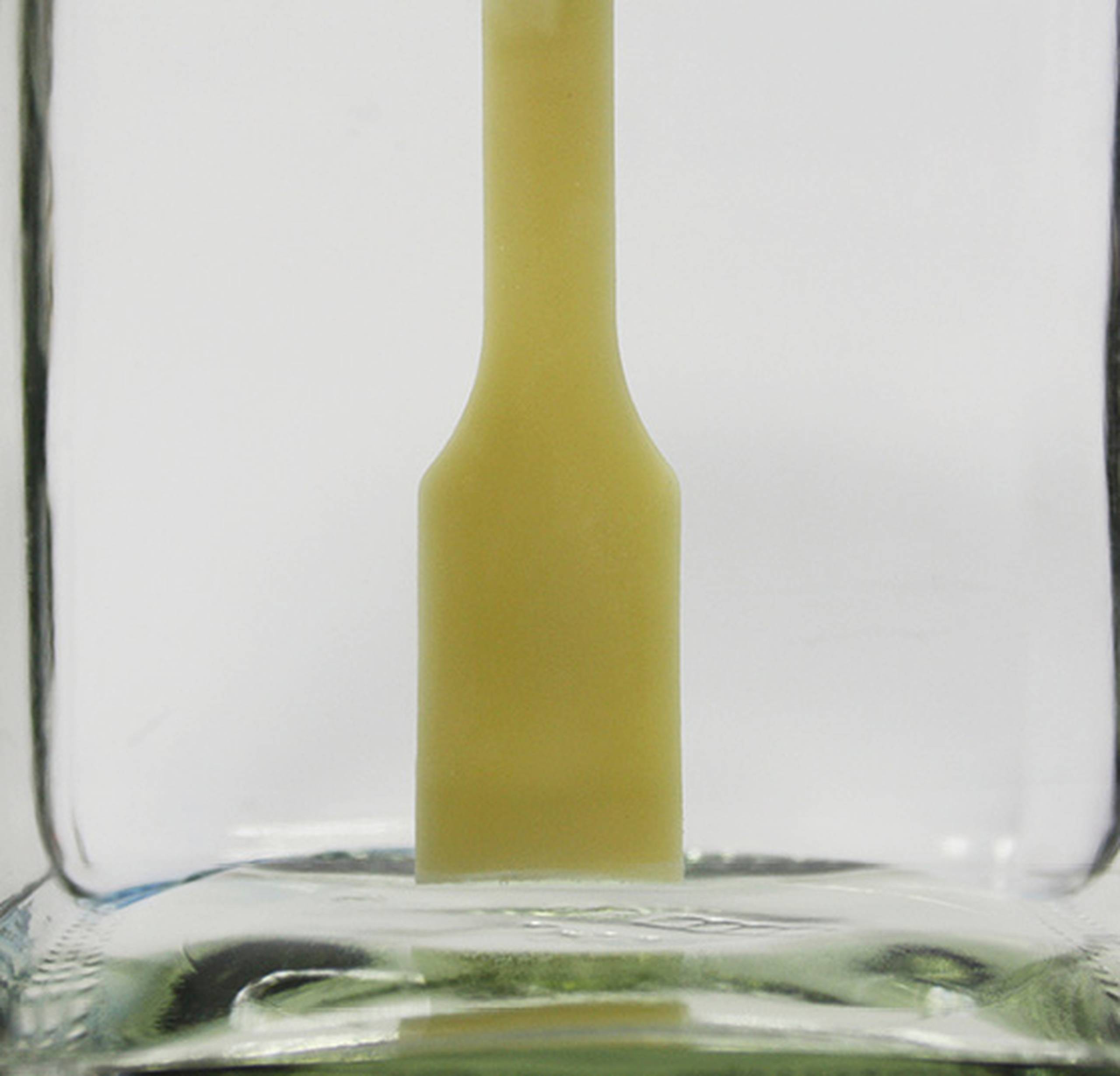

PK-VM GF 30 (4706): After 24 hours in Battery Acid

In the in-house laboratory, aging was carried out in battery acid (38% sulphuric acid) at room temperature, whereby the reaction of two different materials was observed: PK-VM GF 30 (8661) vs. A3 GF 30 1 (2391). The results were remarkable: polyketone (PK-VM GF 30) showed no recognizable change even after 48 hours.

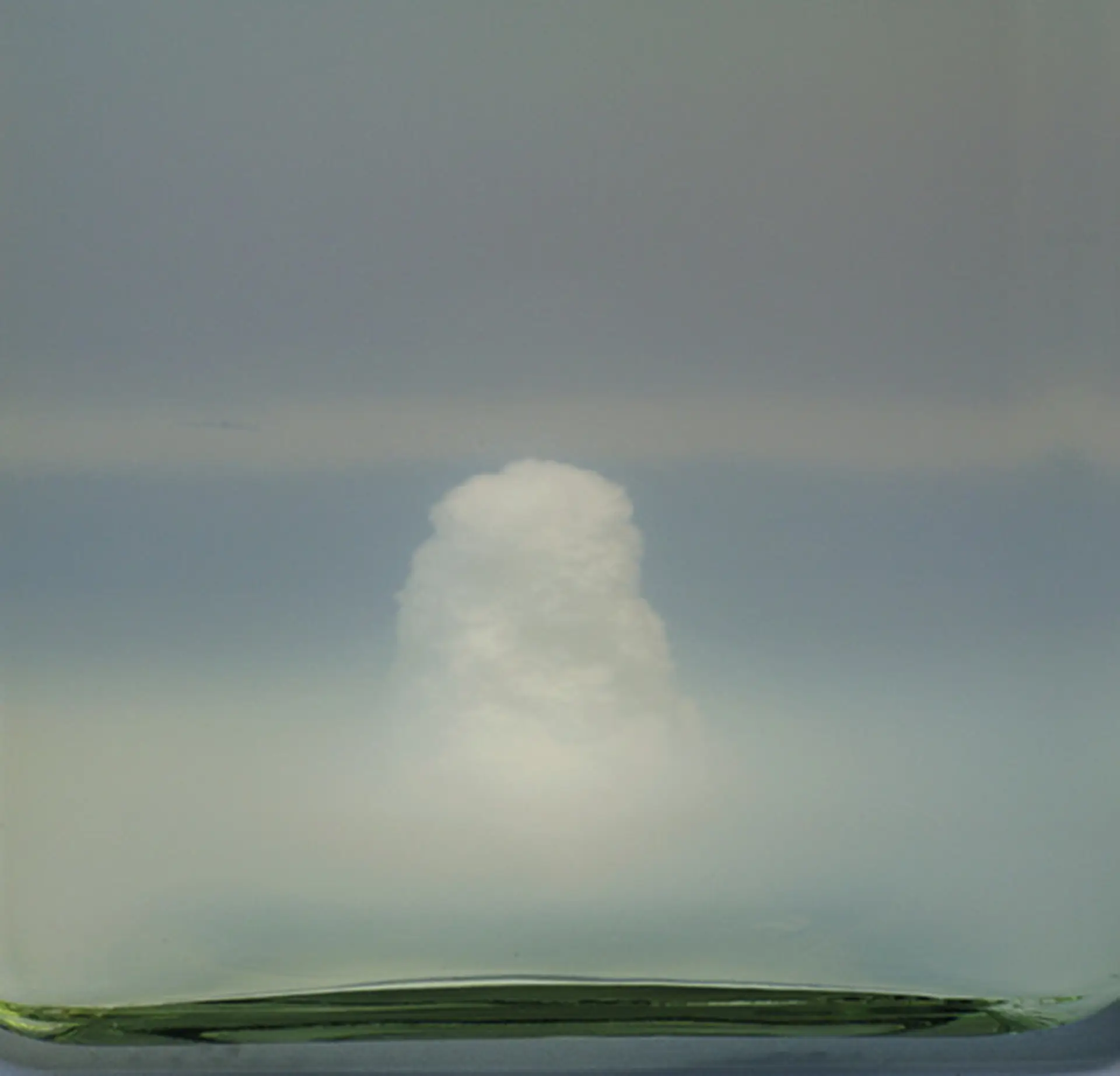

PA 6.6 GF 30: After 48 hours in  Battery Acid

In contrast, test specimens made of PA 6.6 GF 30 showed severe degradation after 48 hours only the glass fibers remained. These results underline the exceptional resistance of polyketone to battery acid compared to other materials such as PA 6.6.

Image dimensions not found

Change image or reupload it

AF-Color® polyketone masterbatches

Polyketone based on masterbatches

Due to the outstanding characteristic properties of polyketone (PK), such as high load-bearing capacity, reduced moisture absorption, good tribological properties, shorter cycle times and, finally, higher environmental compatibility compared to polymer types such as polyamide (PA), polybutylene terephthalate (PBT) or polyoxymethylene (POM), polyketone has been experiencing a renaissance for some time now.

AF-COLOR has developed a masterbatch series for polyketone based on polyketone so that these properties are not influenced by the addition of another type of polymer.

A selection of the "ready to use" colors already developed can be found in the table below.

AKROTEK® PK

Applications

AKROTEK® PK demonstrates its diversity in various industries. The main markets served by AKROTEK® PK include the automotive, furniture and food industries as well as mechanical engineering. Explore the universal properties of polyketone and its multiple applications.

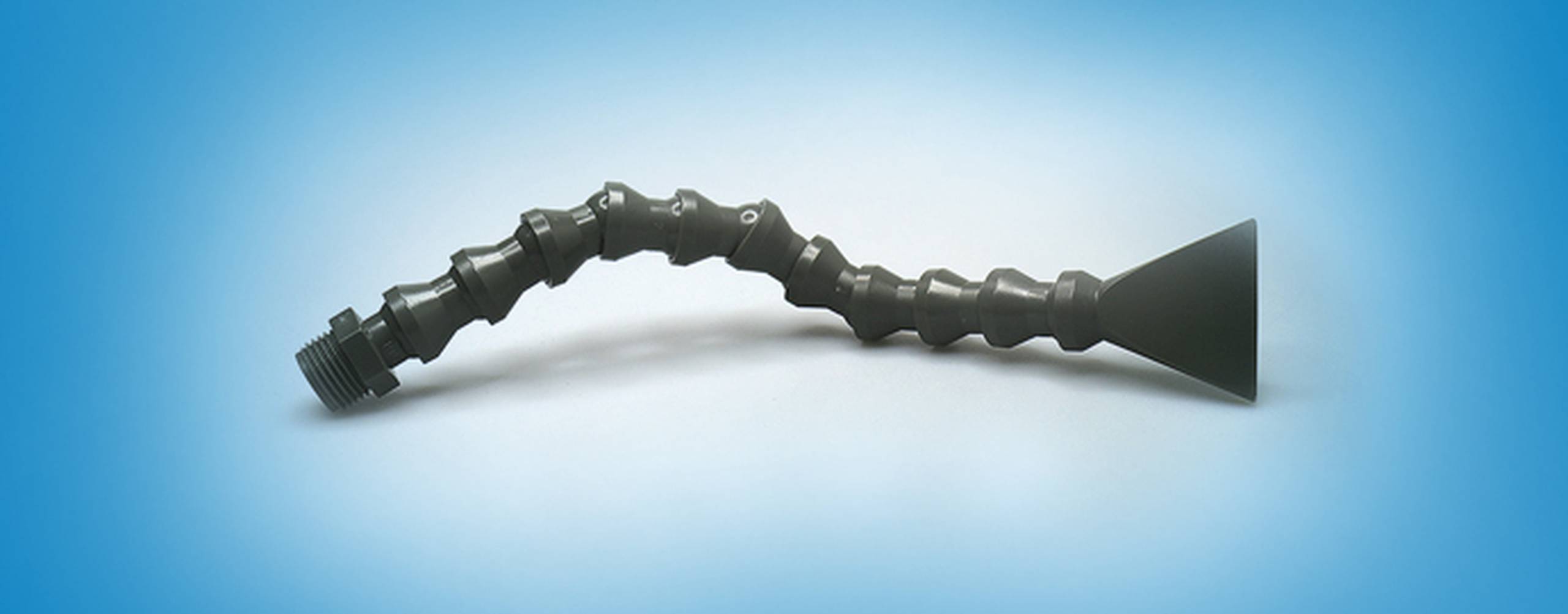

Teaser_Kachel_690x270_Legrom_NEU
EXCELLENT CHEMICAL RESISTANCE

LEGROM VARIO-SYSTEM
