Reliable connector components for the highest requirements
:format(avif))
Project key facts
Manufacturer: MD ELEKTRONIK GmbH
Material manufacturer: AKRO-PLASTIC GmbH
Reliable data transmission, even under the harshest vehicle conditions.
Secure connection. Long-lasting performance.

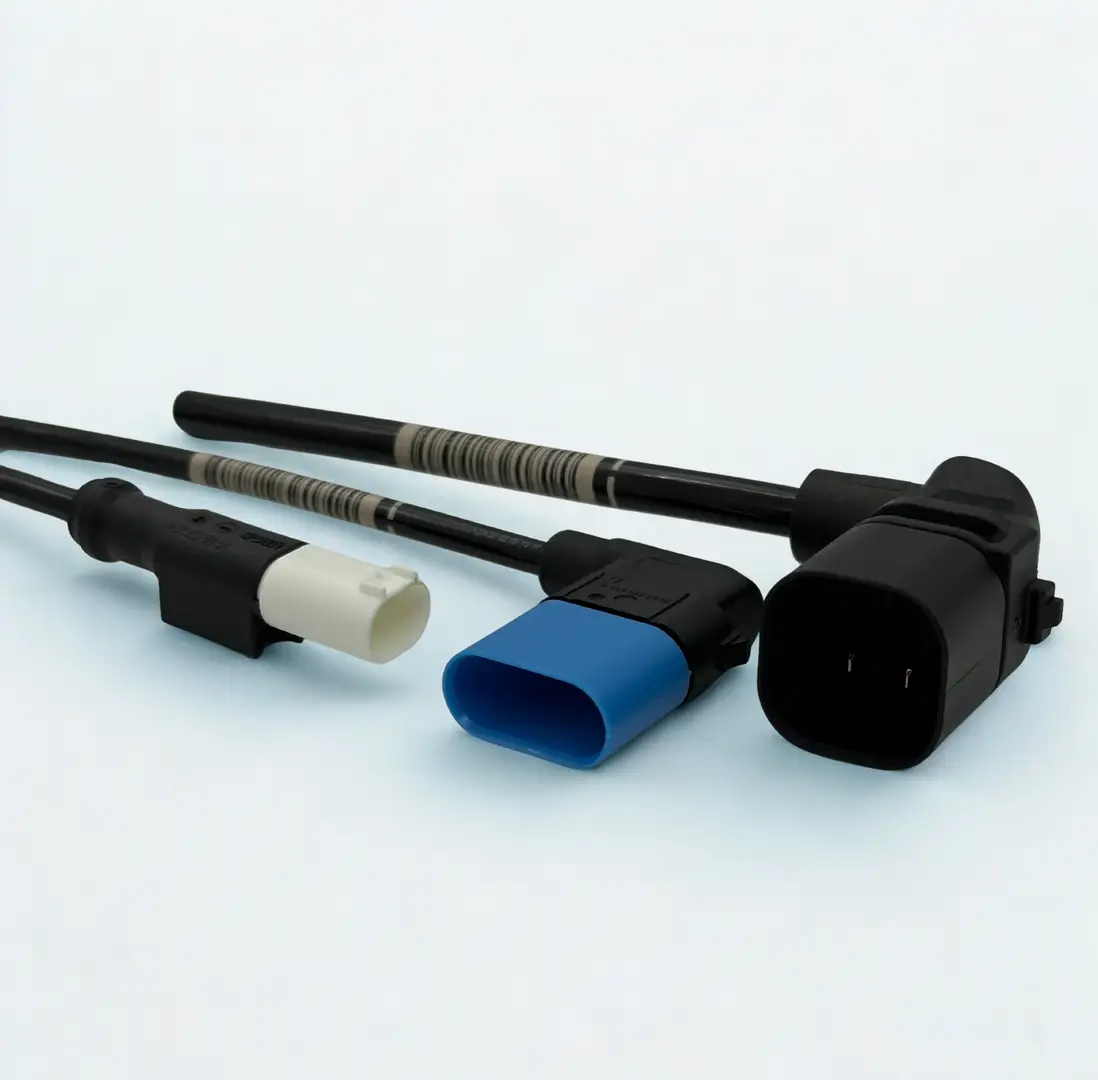

For demanding axle wiring in vehicles, AKRO-PLASTIC, in collaboration with MD Elektronik, has developed a connector component that delivers maximum reliability even under extreme environmental conditions. The foundation is our AKROMID® B3 GF 20 1 black (2483), which ensures an outstanding combination of stability, weather resistance, and durability. This enables the creation of data connectors that function reliably over the long term, even in exterior areas and under heavy contamination.
:format(avif))
Robust in outdoor use.

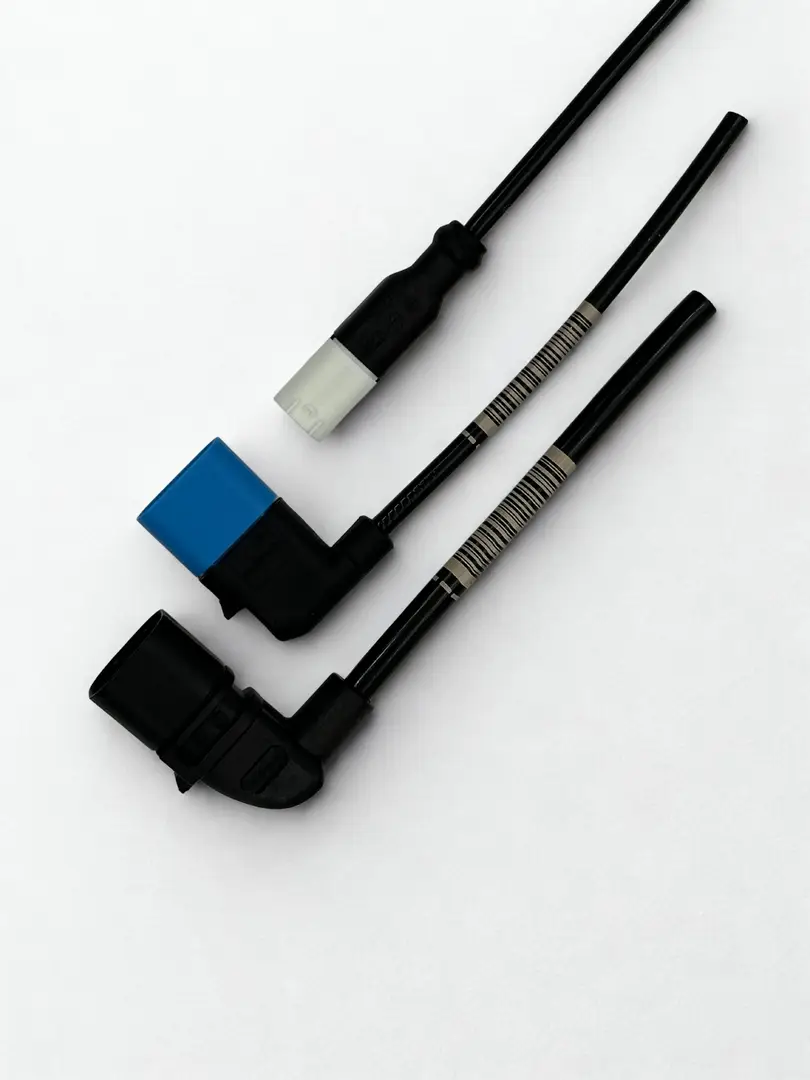

The connector component meets the highest protection rating, IPX9K, and ensures reliable operation even in dirty and outdoor environments. Applications include, among others: Speed sensors, Brake wear indicators, Electric parking brakes, Damper systems
Technical Specifications & Performance Data
Range | Values / Properties |
|---|---|
Electrical | Operating voltage: DC up to 60 V (depending on conductor diameter) |
Mechanical / Connector | Coding efficiency ≥ 80 N
Insertion force ≤ 30 N (for contact pin < 1.2 mm), ≤ 40 N (for < 2.8 mm)
Pull-out force > 60 N |
Environmental / Temperature & Sealing | Temperature range: –40 °C to +125 °C
Protection class: IPX9K (water resistance) |
Standards & Testing | Dynamic load (PG17) in accordance with LV 214 component requirements
Tested in an accredited laboratory of MD Elektronik using environmental simulations (according to customer-specific test standards) |
Here is the datasheet for the compound used.
Compound Explorer
Material expertise that ensures safety and durability.
AKROMID® for reliable connector systems in axle wiring.

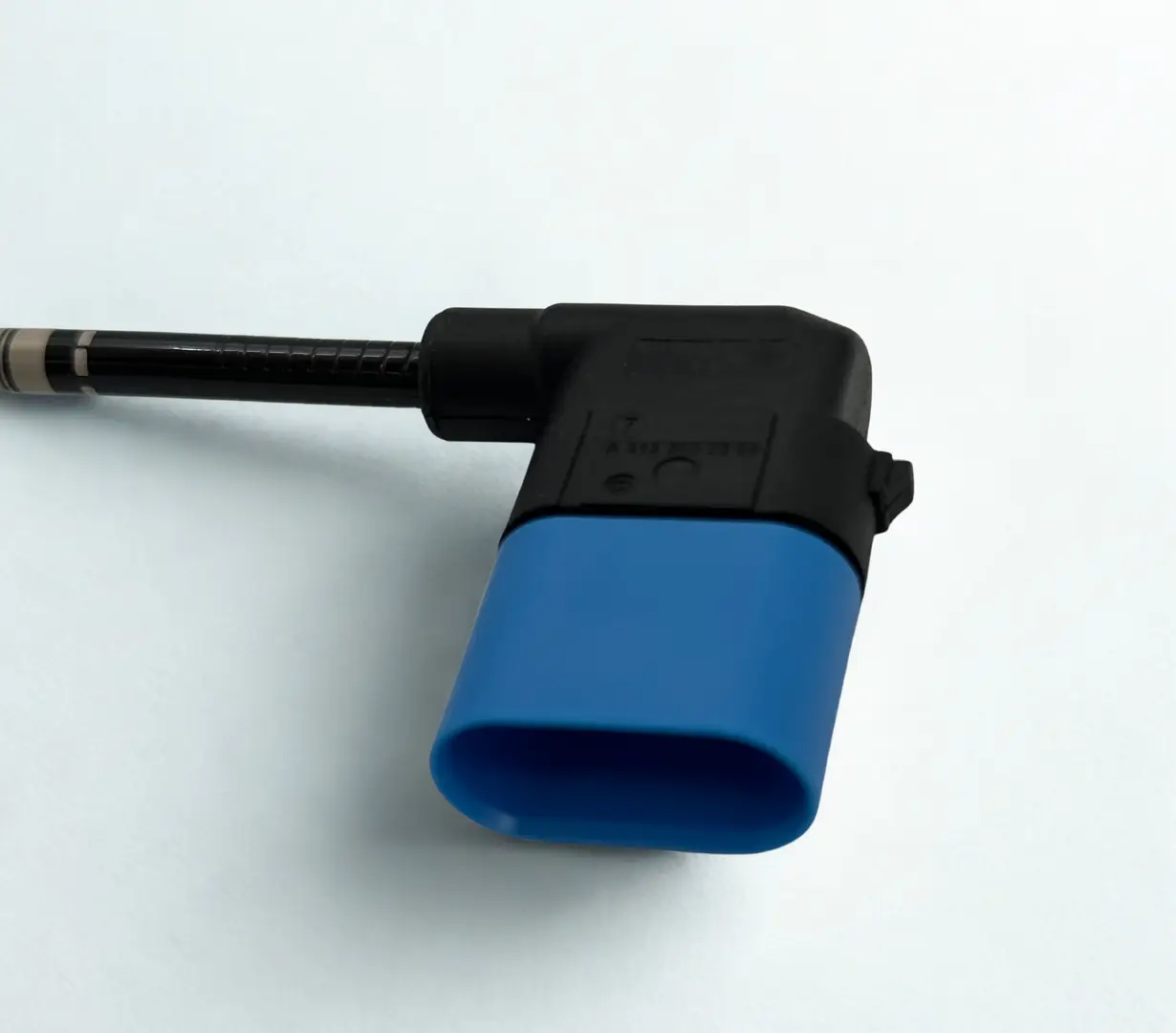

As part of this project with MD Elektronik, our product AKROMID® B3 GF 20 1 black (2483) is used exclusively for the overmolding of axle wiring components. The robust data connectors serve as the interface to safety-critical vehicle systems such as speed sensors, parking brakes, and brake wear indicators. Thanks to its high strength, dimensional stability, and resistance to temperature and environmental influences, our AKROMID® meets the demanding requirements for components used in exterior and contaminated environments. This makes our material a key contributor to the reliability and long service life of these systems. The continuously growing production volumes underline the success of this project and confirm our customers’ trust in the quality and performance of AKROMID®.
